K12 M50 PAS 68 7500kg / 80kmh
Impact Test Standard Hydraulic Road Blocker
Zero penetration

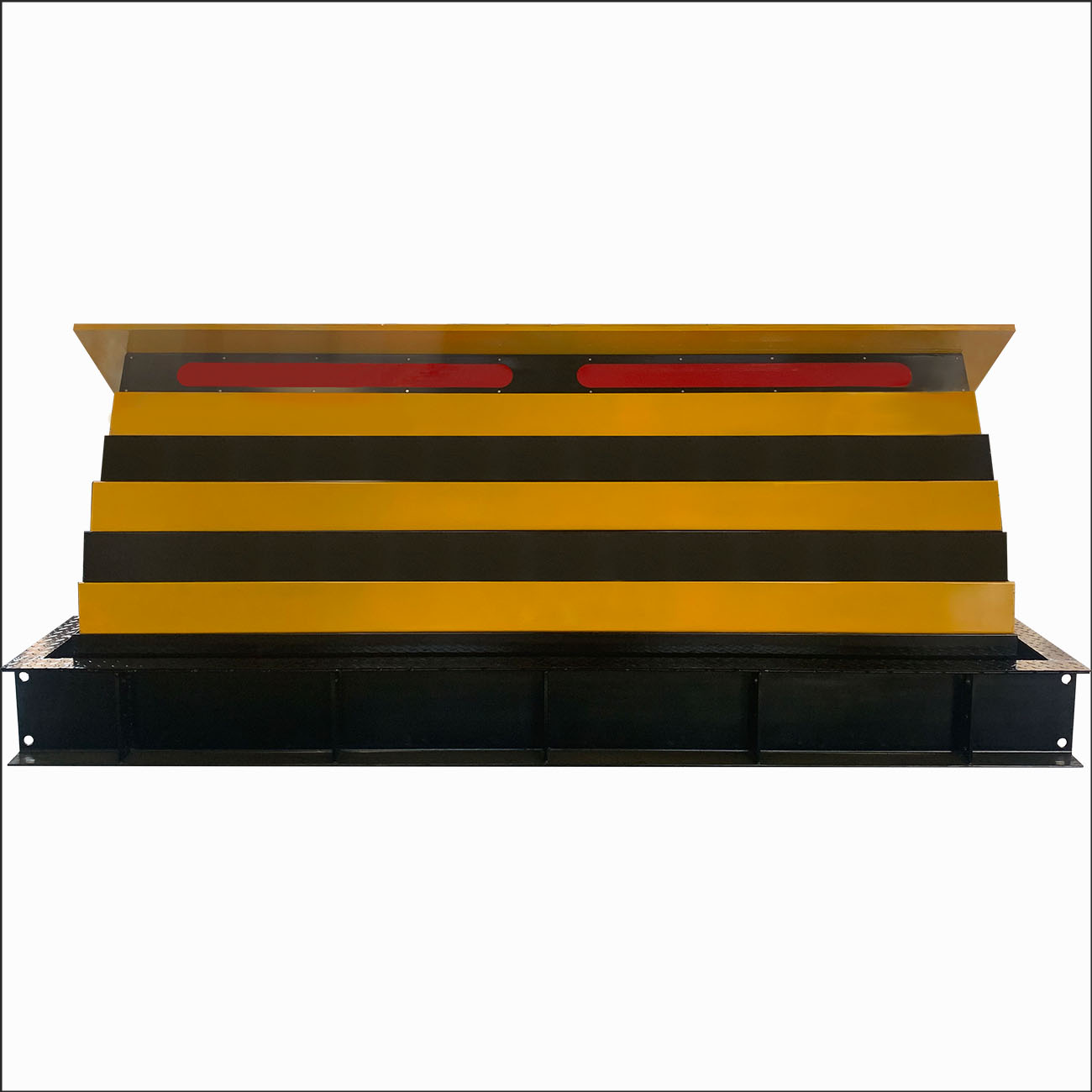

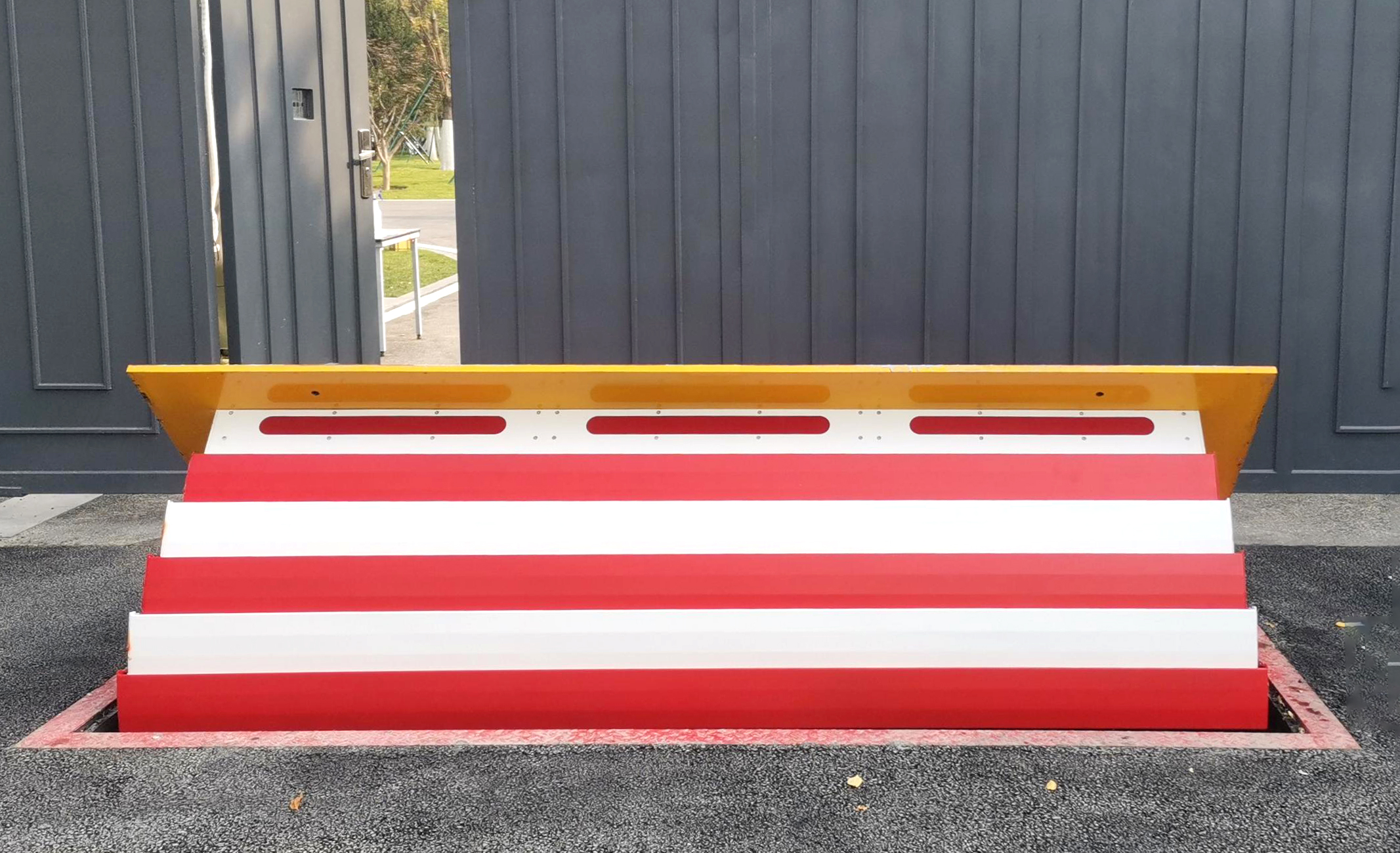

Shallow Mount K12 M50 Hydraulic Road Blocker SM501-1000 has excellent result in crash-test according IWA 14-1 & PAS 68 standard. The road blocker test resulted in the vehicle being stopped within the aperture with Zero Penetration, the blocker remained fully functional after crash tested.
The Anti-Terrorist High Security Shallow Mount Road Blockers provides a high level of security against unauthorized vehicle access, we designed especially for entrance points that have a threat of vehicle attack or for the ones that have high security requirements.
| Category | Details |
|---|---|
| Overall Dimensions | (Intercept Width + 190 mm) L x 1974 mm W x 300 mm H (Depth) |
| Intercept Height | 1000 mm |
| Intercept Width Options | 3M, 4M, 5M, 6M |
| Depth | 300 mm |
| Top Plate Thickness | 25 mm |
| Rising Time | 4-6 seconds |
| Rated Power | 4 kW for 3M & 4M, 5.5 kW for 5M |
| Operating Temperature | -40°C to +70°C (Heating resistance for low temperatures) |
| Impact Tested | IWA & PAS, 7500 kg / 80 km/h, equivalent to ASTM K12/M50 |
| Impact Result | Zero penetration |
AVAILABLE ITEMS:
Emergency fast raise system
Emergency buttons with lock down
Accumulator systems for hydraulic operation in power failure conditions
Access and intercom systems
UPS backup for the electrical system
Interlocking systems to give air-lock type protection on sites with higher threat levels
Inductive loop systems
Traffiffiffic lights and back indications systems
Integral inset warning lights in
A3 steel cover plate with anti-slip coating
E.F.O. emergency start-up circuit (about 1.5 seconds)
Equipment for manual operation
Heat-resistant
Traffic light with two lights (green-red)
Loop inductive detector
Inductive loop
