With the increase in vehicle borne terrorism, Shallow Mount Road Blockers provide an effective alternative to rising arm barriers or sliding gate at high security commercial and industrial sites. It is an electro hydraulically operated obstruction which rises above the ground level preventing any unauthorised intrusions at entry/exit points of high security sites and VVIP zones.
Shallow Mount Road Blockers are unique and reliable Hostile Vehicle Mitigation (HVM) products that provide high level security protection against hostile vehicle attacks. Like conventional road blockers, SM401-800 Shallow Mount Road Blockers provide safe access control, in case of a vehicle attack, they prevent the vehicle from moving by damaging the wheels, front and lower parts of the heavy vehicle and provide effective protection and security by disabling it.The system is capable of completing lifting and lowering movement in 3 – 4 seconds without any limitation of usage.Shallow Road Blocker ,a hostile vehicle mitigation solution, provides a high level of protection where deeper foundations are not possible/practice. With a foundation depth of less that 300mm the road blocker is designed as a Vehicle Security Barrier (VSB) and has been independently physically impact tested at the Transport Research Laboratory (TRL)
For the installation of Shallow Mount Road Blockers, there is no need to dig the ground deeper than 400 mm. Therefore, it is a suitable solution in situations where it is not possible to dig deep into the ground compared to conventional standard road blockers.

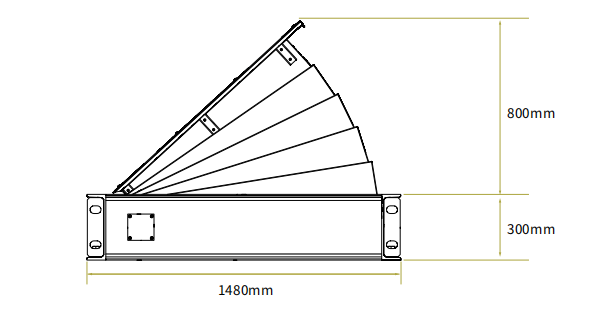

Dimension: (Intercept width+190mm)L x 1480mmW x 300mmH(Depth)
Shallow Mount Road Blocker Height From Ground: 800mm±20mm

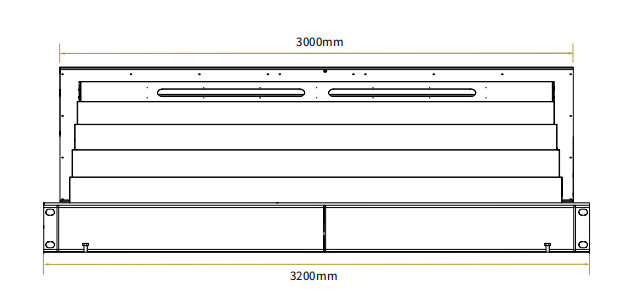

Intercept Width: 3000mm/4000mm＋190mm
Top Plate Thickness: 20mm±2mm
Rising Time: 3-5s
Protection Class: IP 67
Rated Power: 3KW
Operating Temperature: -40°C~+70°C (FOR LOW TEMPERATURESSEE THE HEATING RESISTANCE)
Life Unit: 15 years
Mini Order: 1 sets
Lead Time: 10 working days after confirm the payments
OEM/ODM service are available
Shallow Mount Hydraulic Road blockers are designed especially for entrance points which have a threat of vehicle attack or for the ones that have high security requirements. If there is a threat of vehicle attack in addition to the control of vehicle access in high security applications, Hydraulic Wedge Barriers are the unique solution and the most secure systems. Even though the attack is from high tonnage vehicles with high speeds, it’s not possible for the vehicle to keep on moving because of the damage given to front, wheels and the bottom of the vehicle.
The drive unit is hydraulic, but in case of power failure road blocker can be lowered or lifted manually with the help of manual hand pumps. With the help of PLC controlled electronics, raise/lower function can be achieved by every kind of card readers, biometric readers like fingerprint or hand shape, radio control, on/off key switch etc.Besides, safety accessories like dual vehicle safety loop detectors and red/green lights can be provided as accessories in the system.
- Robust construction of SM401 series Shallow Mount Road Blockers are designed for heavy duty operations and made out of heavy gauge materials,
- Easy to install and maintain by its shallow mount design which provides more advantages compared to conventional road blockers,
- Installation in places with construction constraints,
- Position sensing and speed control with proximity limit sensors which immediately stop the motor operation at limit points. Slowing down at closing and opening limit points which provides a silent and low noise operation
- The drive unit is hydraulic but in case of a power failure or in an emergency situation, the system can be controlled manually with the help of manual hand pump,
- Can be integrated with other access control devices easily.
Emergency fast raise system
Emergency buttons with lock down
Accumulator systems for hydraulic operation in power failure conditions
Access and intercom systems
UPS backup for the electrical system
Interlocking systems to give air-lock type protection on sites with higher threat levels
Inductive loop systems
Traffic lights and back indications systems
Integral inset warning lights in
A3 steel cover plate with anti-slip coating
E.F.O. emergency start-up circuit (about 1.5 seconds)
Equipment for manual operation
Traffic light with two lights (green-red)
Loop inductive detector
HPU – Hydraulic Power Unit:In the power unit the two systems (hydraulic and electrical) are separated to make easier and safer the maintenance operations; input and output dry contacts are available to manage the Road Blocker.Hydraulic unit is specially designed for road blockers and bollards. TThere are manometer, manual hand pump, oil level and temperature indicator, direction control valve, tank cover, pressure setting, 3kW electric motor in hydraulic system.
EMERGENCY FAST OPERATION (EFO): In case of emergency, optional Emergency Fast Operation feature raises the road blocker to fully up position in less than 5 second, thanks to high-pressured accumulator. This feature is activated by the panic button on remote control keyboard or any external signal such as SM401 Series Rising Arm Barrier’s crash detection.
In addition to anti-ramming properties, this blocker has another advantage – this is an ultra small installation depth of 300 mm. The completely innovative design of this lock allows you to combine its main anti-ram function with the simplicity and speed of installation.

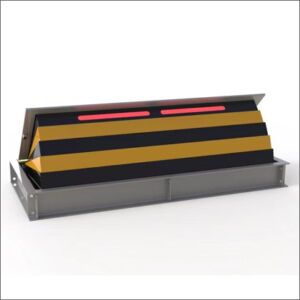

ZASP Shallow Mount Road Blocker SM401-800 provides a high level of security against unauthorized vehicle access.It is a kind of Wedge Barrier which high quality and safe. We designed Shallow Mount Barrier especially for entrance points that have a threat of vehicle attack or for the ones that have high security requirements.
ZASP Hydraulic Wedge Barrier,Suprema RB-SM401-800 Shallow Mount Road Blocker features for limiting the depth of the basement compartment and to avoid the main problems of laying in presence of public services, moreover Shallow Mount Road Blocker is possible to install the Wedge Barrier on ground level by using a slope. The drive unit is electron-hydraulic, external hydraulic station and controller, typical rising/descend time is 3-5 seconds, in case of emergency, rising/descend time can be as low as 1.5 seconds if hydraulic accumulator addedthe optional EFO system.
Wedge Barrier meaning？hydraulic wedge barrier, also called wedge barriers are security systems able to preventing damage, expecially vehicle attrack.Wedge barrier have very durable structure which can fully stop small vehicle and truck. Based on length of the road, we can design the most suitable solution and produced the quality products for your requirements.
ZASP have recently added a number of SM401-800 Shallow Mount Vehicle Wedge Barrier to their range including crash tested road blockers, after acquiring the Intellectual Property Rights to the APT Security Systems SM401-800 rated and impact tested product range.
ZASP Shallow Mount Road Blocker SM401-800 are designed to stop heavy duty vehicles and offer excellent protection of buildings and establishments from security threats and hostility.
ZASP have tested SM401-800 rising road blockers in our range, both of which cater for every possible security requirement. This includes the ZASP Shallow mount that has also been tested as a true surface mount unit and the ZASP Deep.
As the top Chinese supplier in this industry,ZASP is a global provider of HVM (Hostile Vehicle Mitigation) solutions & high security vehicle control systems.“We design and manufacture a range of physical security solutions that protect critical infrastructure and public places from vehicle borne threats”Vehicle security barriers, road blockers, security bollards, sliding automatic gates
ZASP provide high security level products of Hydraulic Wedge Barrier, Rated Fixed Bollards, Road Blockers and Tyre Killers, also supply Semi-Automatic Bollards / Fixed Bollards / Removable Bollards /Manually Retractable bollards / Portable MVB/ Sliding And Swing Gates for different security level selected.Welcome to contact us if you are interested in our products.
