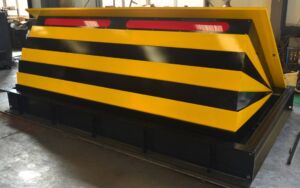

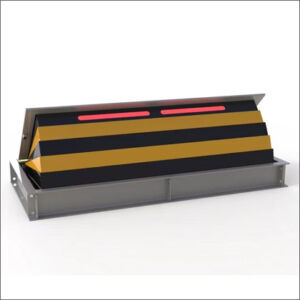

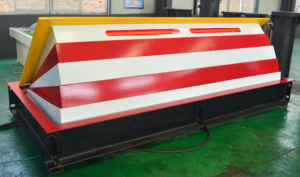

K12 M50 Impact Tested Shallow Mounted Hydraulic Automatic Road Blocker With EFO
IWA 14-1 7500kg / 80kmh, equal ATSM K12/M50
Zero penetration
How quick can stop hostile and non-hostile vehicles entry? Road blocker working with EFO can be opening in 1.5 sec. Opening time of wedge barrier normally in 4~6 seconds, it is not enough when react in front of terrorist attack. So the fastest solution is install EFO – EMERGENCY FAST OPENING SYSTEM.
Advantages

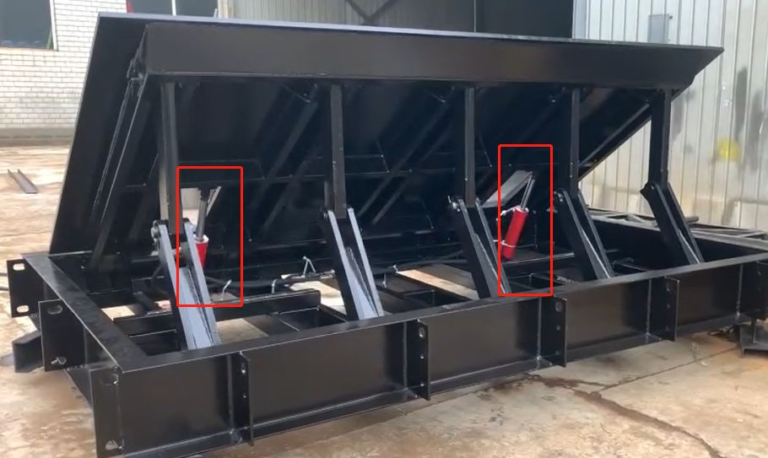

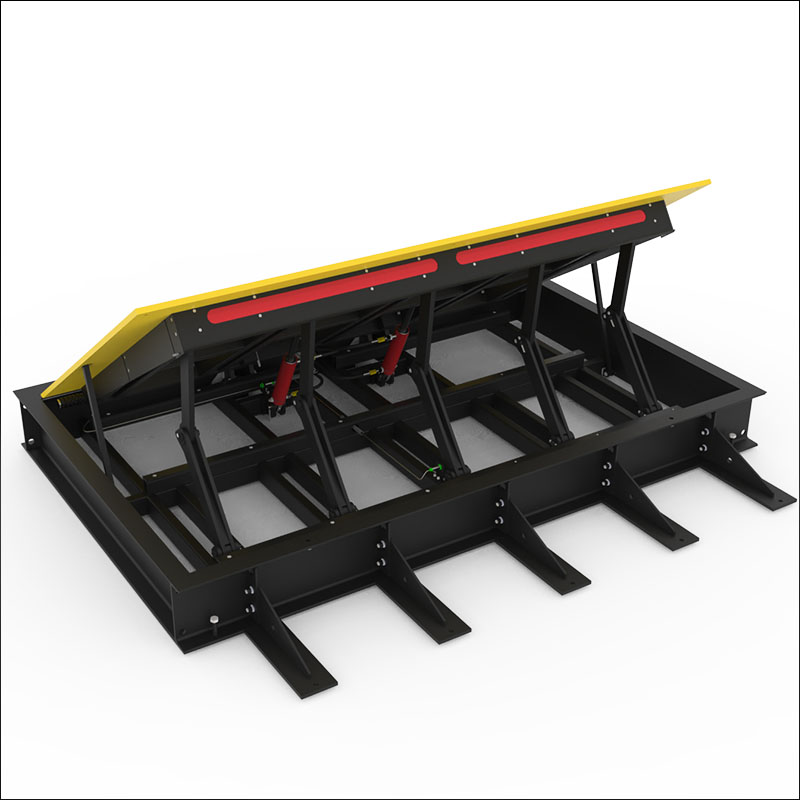

1.Dual hydraulic oil cylinders, high stability and durability
2. Top Plate 25mm(±2) thickness
· National standard high-strength steel for the top plate;
· Heavy rolling without deformation;
· Skid resistance pattern-steel surface;
· Static loading capacity: ≤100 tons
Passing loading capacity: ≤200 tons;

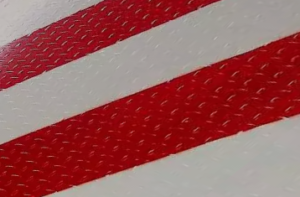

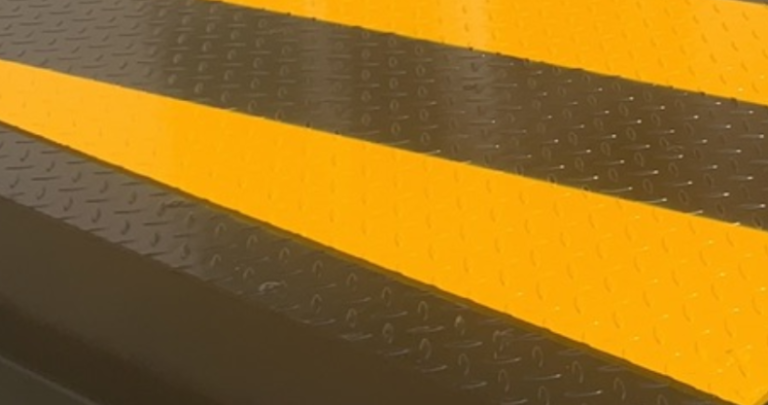

3. Skid resistance pattern-steel surface
Specification
| Dimension | (Intercept width+200mm)L*2000mmW*300mmH(Depth) |
| Intercept Height | 1000mm(±10mm) |
| Intercept Width | 4M with front folding skirt 6M without front folding skirt |
| Depth | 300mm |
| Top Plate Thickness | 25mm(±2mm) |
| Product Weight | 4M-3100KG, 6M-4200KG |
| Movement Principle | Hydraulic |
| Rising Time | 3~5s |
| Color | Yellow & Black, RAL color optional |
| Type Of Use | Intensive |
| Finish | Special Anti-corrosion treatment(Hot Dip Galavanized+pure epoxy outfitting primer+polyurethane topcoat), Black/Yellow or RAL optional |
| Loading Capacity | Static Loading Capacity: ≤100 Tons Passing Loading Capacity:≤200 Tons |
| E.F.O Circuit For Emergency Rising | EFO≤2s,supply 2 times rising in case of power off. |
| Protection Class | IP68 |
| LED Warning Light | Yes |
| Device For Manual Handling | Yes |
| Voltage For Control Unit | 200V,triphasic,50HZ |
| Rated Power | 7.5Kw |
| HPU Dimension | Without Roof:1200Wmm*900Dmm*1700mm; With Roof:1260Wmm*960Dmm*1797Hmm; |
| Control System | PLC control,linkage work |
Available Items
Emergency fast raise system;
Emergency buttons with lock down;
Accumulator systems for hydraulic operation in power failure conditions;
Access and intercom systems;
UPS backup for the electrical system;
Interlocking systems to give air-lock type protection on sites with higher threat levels;
Inductive loop systems;
Traffic lights and back indications systems;
Integral inset warning lights in;
A3 steel cover plate with anti-slip coating;
E.F.O. emergency start-up circuit (about 1.5 seconds);
Equipment for manual operation;
Heat-resistant;
Traffic light with two lights (green-red);
Loop inductive detector;
Inductive loop.
