Shallow Mounted Fixed Bollards
Impact test video by 7200kg truck travelling at 80 kph
● Bollard diameter: 273±2mm
● Height above ground: 1100±5mm
● Depth: 200mm
● Bollard Material: Q345 steel
● Basement Material: Q235 steel
● Basement Surface Treatment: Paint
● Color: Meet customer requirment

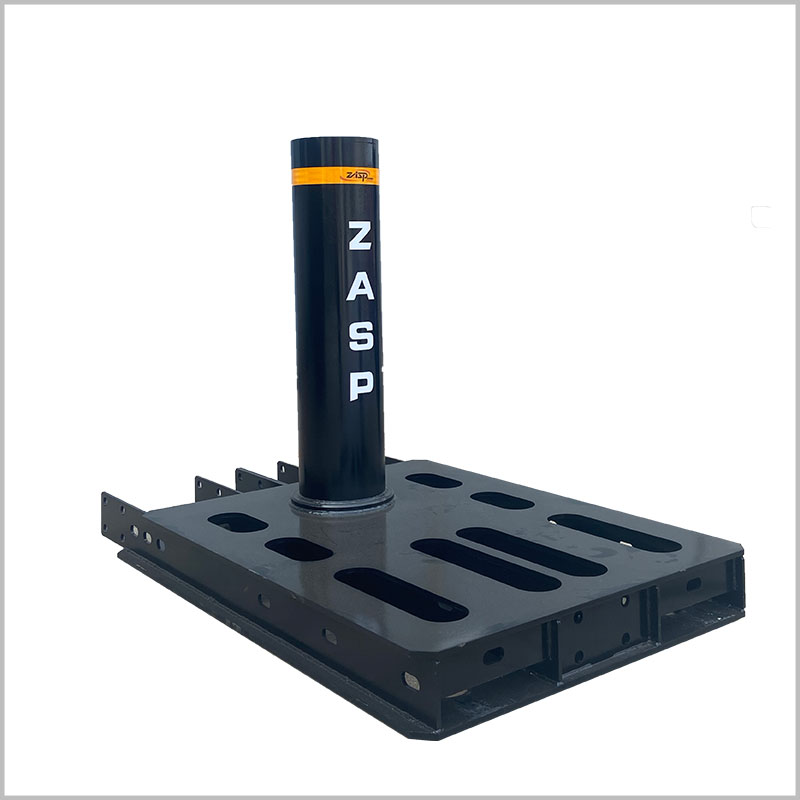

IWA Suprema Shallow Mounted Fixed Bollards
ZASP IWA 14-1 Suprema HB-SF501 Super Shallow Mounted Fixed Bollards are the new crash rated product in the early of 2023. This model type provide the highest level of security against unauthorized vehicle access. Suprema HB-SF501 Fixed Bollard passed crash tested IWA 14-1 by 7200kg truck travelling at 80 kph, P2.
Based on the dense network of underground in urban environment is complex system which is not suitable installed depth evacuation of foundation. We highly recommend this type of fixed bollard that the structure of 200mm shallow mount can be available used in most of sites.
The standard of material is hot-dip galvanized. Otherwise the product also can be painted specified RAL color or finish with types of sleeves. Fixed bollards widely used in different areas, especially the crash rated bollards, they are normally installed in some sensitive locations, such as government office, military base, jails, power station, airports etc.
