The HA102-600 hydraulic automatic retractable traffic bollard is a high-quality hydraulic security bollard which is particularly suitable for the intelligent and automatic control of traffic within residential areas. It is an ideal solution for entrance with high security requirements. The solid body can stop the vehicle with high tonnage and high speed easily. Meanwhile, it has the advantage of invisibility and aesthetics.Normally, the bollard system will be integrated into entrances and exits of commercial premises and car parks as well as of leisure and sports centers with a middle security level (M30). Bollards can be operated by remote controller, push button, card reader and other existing access control system.
ZASP Hydraulic Automatic Bollards China Supplier can perfectly combine with ZASP boom barrier, tyre killer and road blocker for high level security. ZASP is one of the leading Hydraulic Automatic Bollards China Suppliers, Welcome to visit our website and buy or wholesale our cheap HA102-600 Hydraulic Automatic Bollards at low price.
HA102 impact test video by 1500kg/100kmh, penetration 0.87 meters, P1

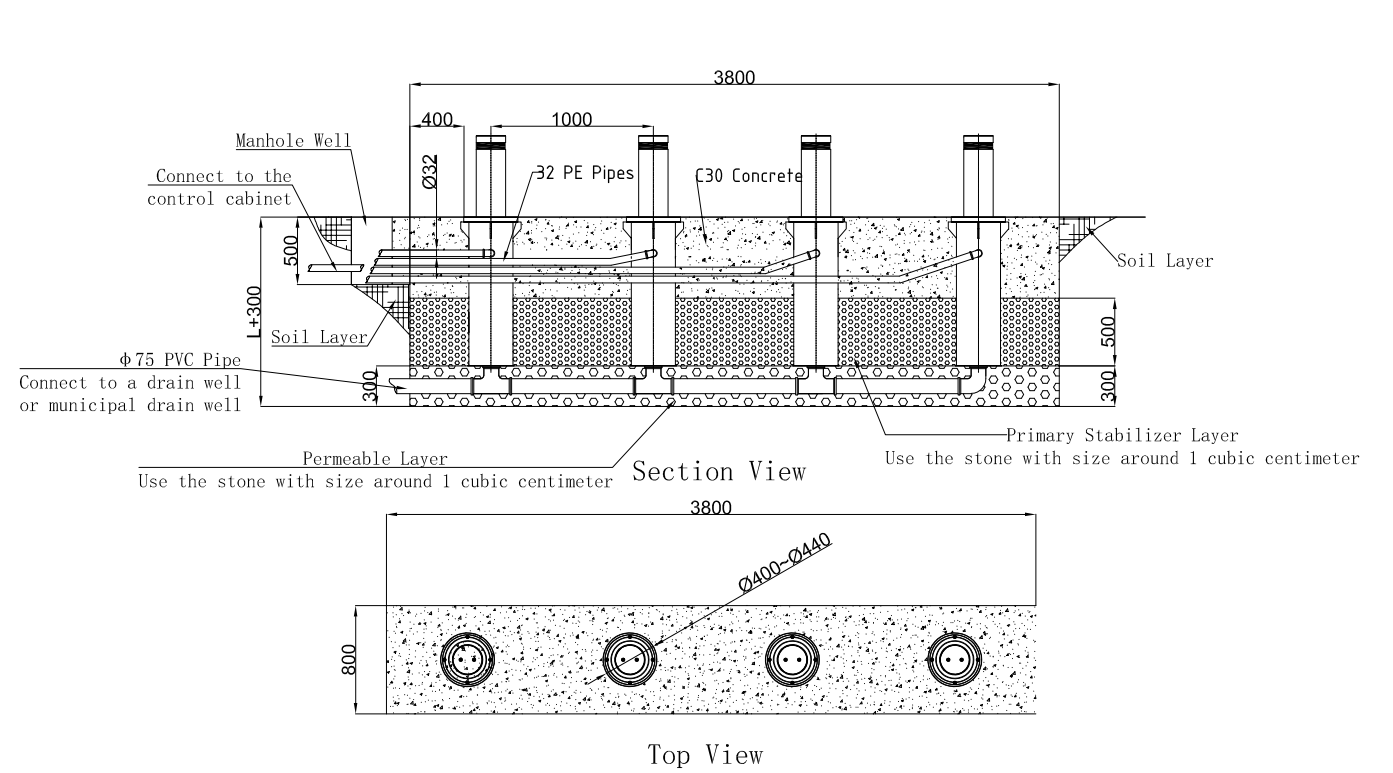

Installation drawing of drain mode
to avoid water vapor permeated into the wire.

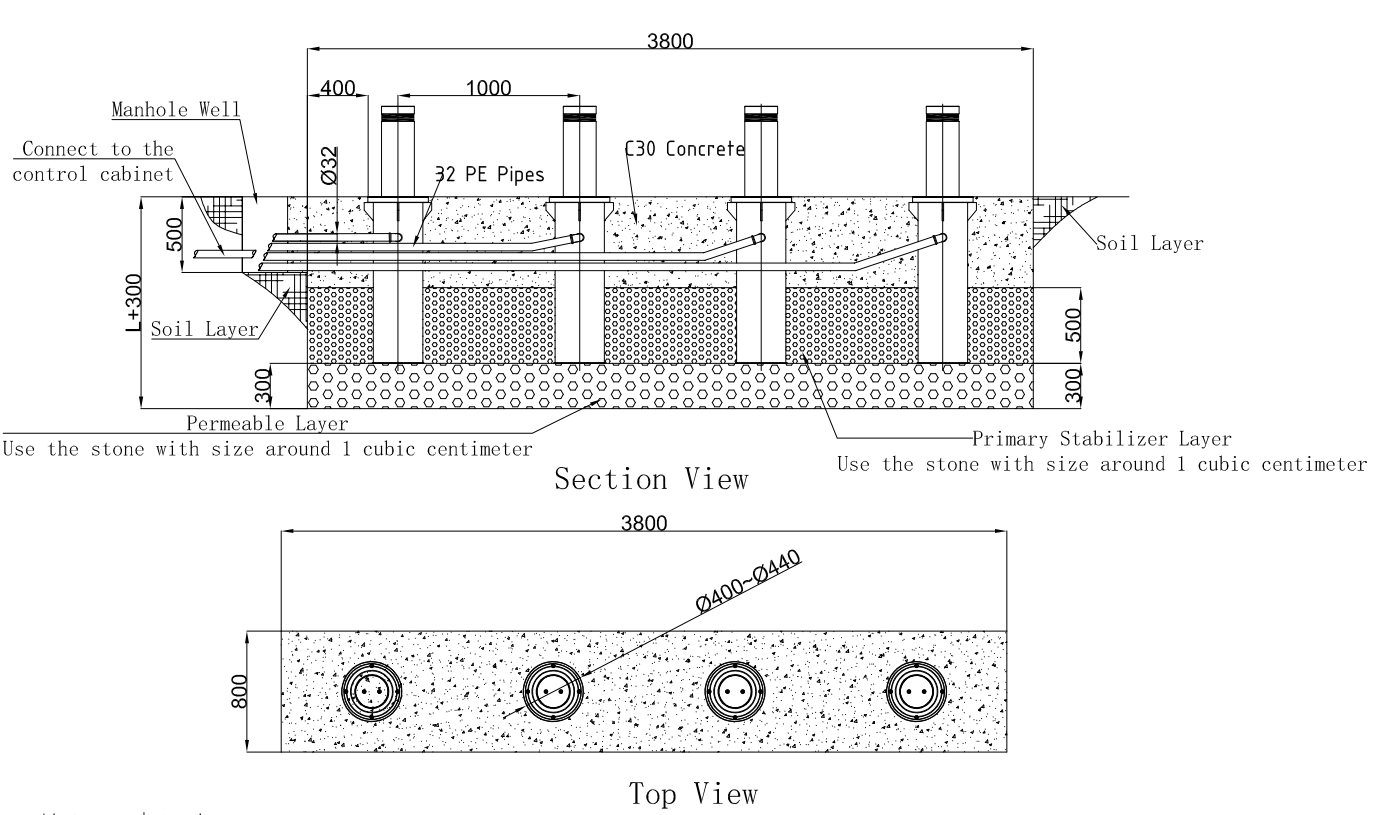

Installation drawing of water seepage mode

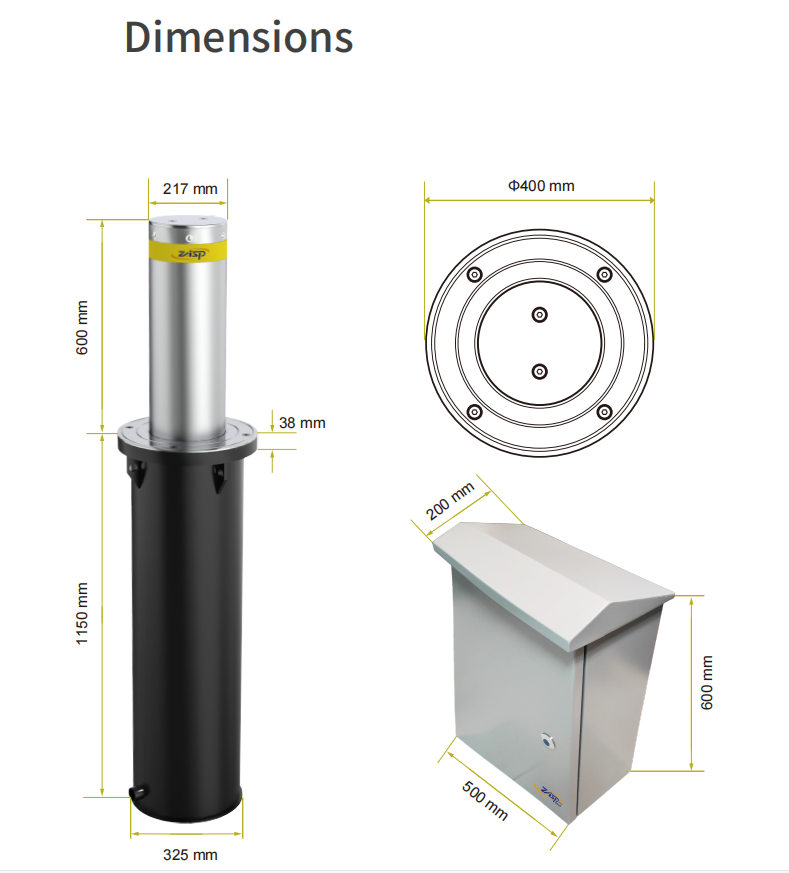

● Dimension: φ400×1150mm
● Bollard diameter: 217±1mm, customized 271mm diameter
● Bollard thickness: 10±1mm
● Height above ground: 600mm, customized 700-800-900-1000mm height
● Rising time: 3.8s
● LED light: Yes
● Protection level: IP68
● Working temperature: -40℃ ~ +70℃
● Crash rating: China D1 rating, 1500KG/100KMH, penetration 0.87 meters
● Material: 304 stainless steel, optional 316 stainless steel
● Color: customized
HA102 hydraulic automatic bollard is automatic security barrier systems. It was passed crash tests under China standard <Anti-Riot Lifting Barrier Standard (GA/T 1343-2016)> in 2018 January. Compare to other standard system, China standard have more higher and clear requirements on equipment work ability after installation.The HA102-600 Hydraulic Automatic retractable traffic bollard is a high-quality hydraulic security bollard which is particularly suitable for the intelligent and automatic control of traffic within residential areas. It is an ideal solution for entrance with high security requirements. The solid body can stop the vehicle with high tonnage and high speed easily. Meanwhile, it has the advantage of invisibility and aesthetics.
Except crash tests, HA102 automatic bollard passed continues 5000 lifting test, IP68 water proof and dust proof test, temperature test etc.. series of performance tests.According to different types, equipment lifting time could range from 3 until 5 seconds. With emergency release system, power outage or other emergencies, can be artificially lower, release vehicles.
What is a hydraulic bollard?
Hydraulic Automatic Bollards is designed to meet the requirement of control vehicles not entry in sensitive areas. It has high practicability, reliability, safety, and customer can meet the needs of protection with lower cost. Multi- configuration provided for various customers. High security automatic remote control traffic road rising bollard for schools and parks.
- Customized for different users requests
- Durable, Overload, Operate Smoothly, Low Noise, Fast speed up&down
- Remote control system realize wireless control up&down within 30 meters range
- Micro-control technology makes bollards work stable and reliable,Easy integrate to other systems
- Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
- Advanced Hydraulic pressure technologies
Manual control hydraulic system devices
