Automatic Rising Bollard
Suprema HB-HA502
PAS 68 & IWA 14-1

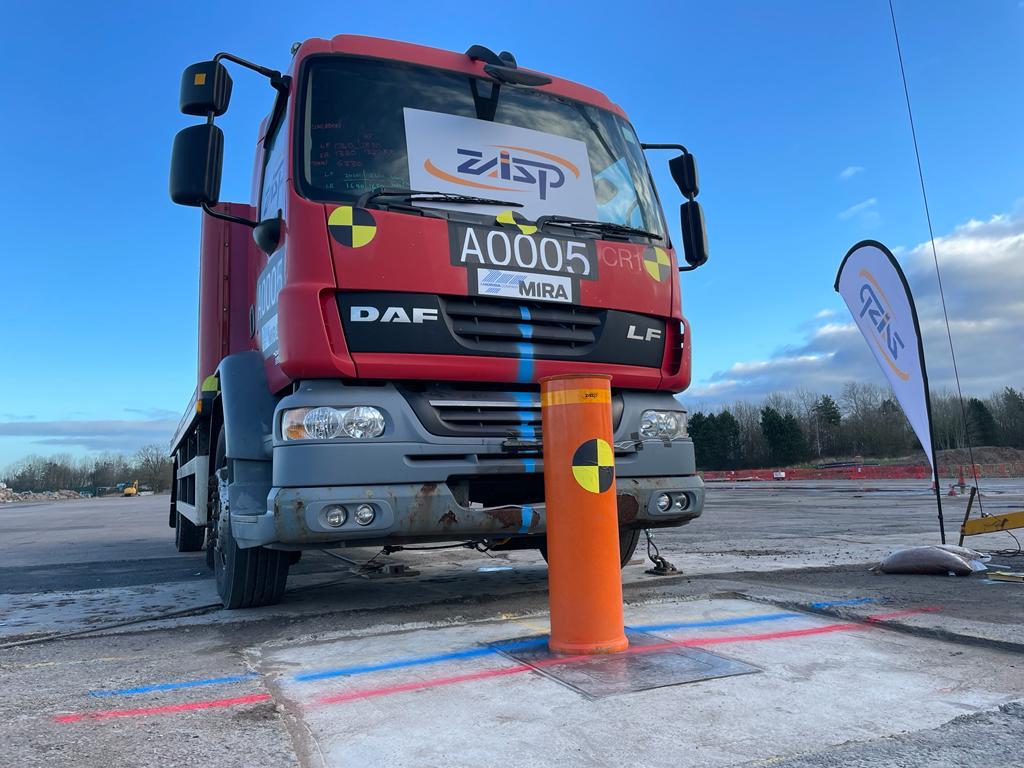

Impact test video by 7500kg truck travelling at 80kph
4.1 meters, P2
-

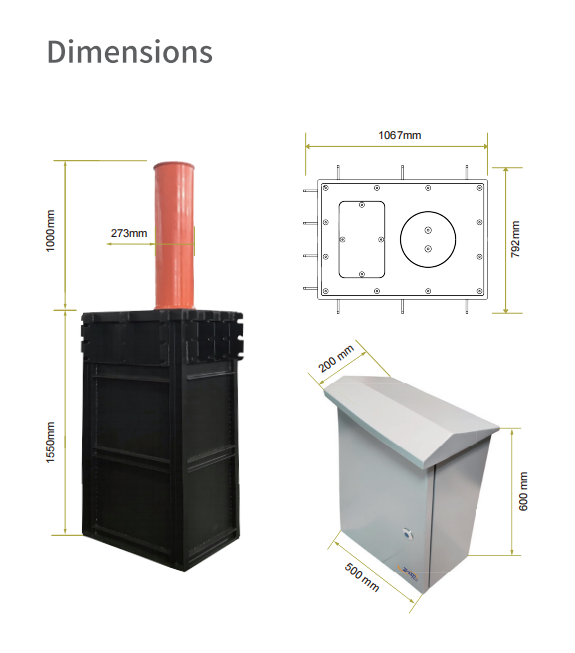

- Dimension: 1067mm*792mm*1550mm
- Cylinder diameter: 273mm±2mm
- Cylinder thickness: 10±1mm
- Cylinder finish: Anti-Corrosion Treatment with RAL color
- Height above ground: 1000mm±3mm
- Depth: 1550mm
- Rising time: 4~6s
- Protection level: IP68
- Working temperature: -40℃ ~ +70℃
- Material:Q345 Carbon Steel; 304 stainless steel, optional 316 stainless steel
- Color: RAL color

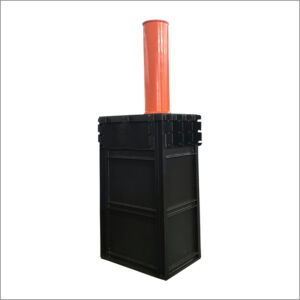

The Suprema HA502-1000 hydraulic rising bollard is the latest product to present by ZASP in the early of 2022. Anti-terrorist grade hydraulic automatic bollard HA502-1000 SINGLE BOLLARD CRASH TEST PAS 68 & IWA 14-1 K12/M50 by 7500kg truck travelling at 80kph. P2, 4.5 meters.
The automatic bollard offers up to 2000 cycles a day and almost 300,000,0 cycles over its service life, making it suitable for very frequent use. With an impact energy destruction of 2000000J, the bollard offers maximum resistance on impact. The Suprema HA502-1000 features Emergency Fast Operation (EFO).
